Chain trencher for efficient digging, featuring robust chains for deep excavation. Ideal for construction, landscaping. Compact design, easy operation.
Item NO.:
JG-ZLead Time:
15-45daysProduct Origin:
ChinaBrand:
JingGongShipping Port:
xiamenPayment:
L/C or T/TPrice Range:
1-5/60000$Price Range:
6-10/40000$Color:
blue/orange/yellow
Tel/Whatsapp : +8613799243565
Fax : 13799243565
Email : sales@fjjgjx.com
Skype : +8613799243565

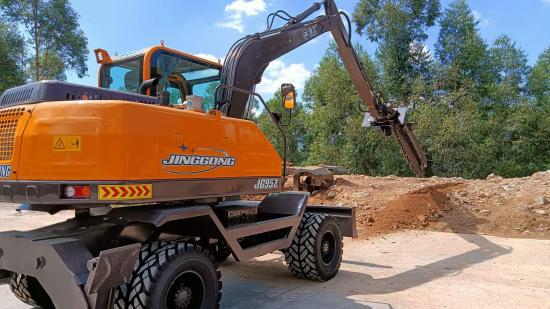

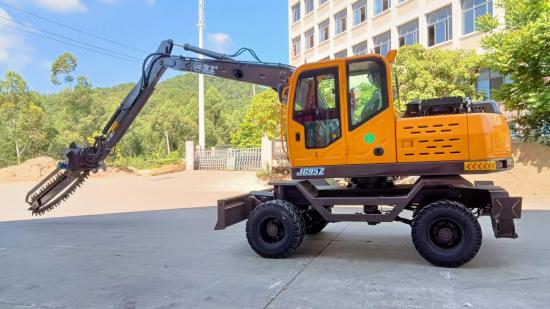

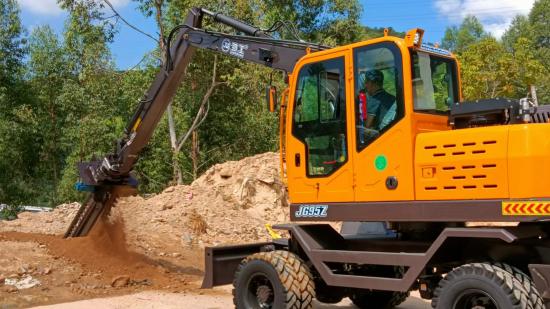

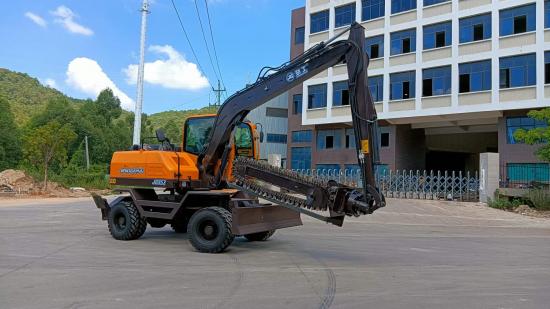

Chinese Wheel Excavator Chain Dozer Chain Excavator Trencher
Our Chain Trencher is not made only for hard grounds and soils, It can also be working in rocks with up to 50 MPa compressive strength.
Jinggong Series Chain Trenchers are available for wide models of excavators from 6 to 25ton excavators.
| Why Choose Us
1.Strict quality management produce effective and stable products to meet customers' needs.
2. Strict detecting system and advanced inspection equipment.
3.Professional sales team, quality inspection & report, maritime logistics guidance.
4.We grants our clients a twelve-month-period or 2000-hours warranty for any machine purchased from us.
5.We offer perfect facilities and comfortable environment and can provide training services to different users.
| Company
We are a leading manufacturer and exporter of wheel excavators, crawler excavators, sugarcane harvesters, sugarcane grab loaders, multi-function excavators. We have nearly 20 years of professional experience, and our products have been exported to many countries.
| Workshop Display
Our company abides by the business philosophy of "quality first, customer first" to ensure product quality. We have rigorous production procedures, and each production process is carried out under strict quality inspection.Only after passing the inspection can they move on to the next procedure. At the same time, we insist on creating a neat, clean and safe working environment.
| Process
| Exhibition Show
| Certificates
| SPECIFICATIONS | ||||||||||
| RANGE OF OPERATION | Boom length | 3300mm | ||||||||
| Arm length | 1850mm | |||||||||
| Diameter of eletric sucker | 800mm | |||||||||
| Maximum suction weight | 500kg | |||||||||
| Maximum Digging Reach | 6400mm | |||||||||
| Maximum Digging Depth | 330mm | |||||||||
| Maximum Digging Force | 45KN | |||||||||
| Maximum Digging Height | 6870mm | |||||||||
| Maximum Dumping Height | 4860mm | |||||||||
| Back-end radius of gyration | 1980mm | |||||||||
| DIMENSION | (Length*width*height) travel position | 58200*2100*2850mm | ||||||||
| Axle base | 2400mm | |||||||||
| wheel base(Front/rear) | 1660mm/1580mm | |||||||||
| Ground clearance of counterweight | 1060mm | |||||||||
| Min ground clearance | 285mm | |||||||||
| TECHNICAL PARAMETERS | Angle of rotation | 360° | ||||||||
| Machine weight | 7010kg | |||||||||
| Engine model | YUCHAI 4FA65 | |||||||||
| Rated Power | 48KW | |||||||||
| Rated Speed | 2200r/min | |||||||||
| Hydraulic system working pressure | 20Mpa | |||||||||
| Hydraulic system flow | 150L/min | |||||||||
| Metering gear pump | 2*25ml/r | |||||||||
| Max Hauling force | 45KN | |||||||||
| Walking speed | 25km/h | |||||||||
| Grade Climbing ability | 58%/30° | |||||||||
| Tyre model | 7.50-16 | |||||||||
| Volume Of Bucket | 0.2-0.3m3 | |||||||||
| Swing overload pressure | 20Mpa | |||||||||
| Full circle swinging time | 5.5s | |||||||||
| Fqt Fuel Quantity | ≥4L/h | |||||||||
| Capacity Of The Fuel Tank | 110L | |||||||||
| Hydraulic Tank Capacity | 110L | |||||||||
