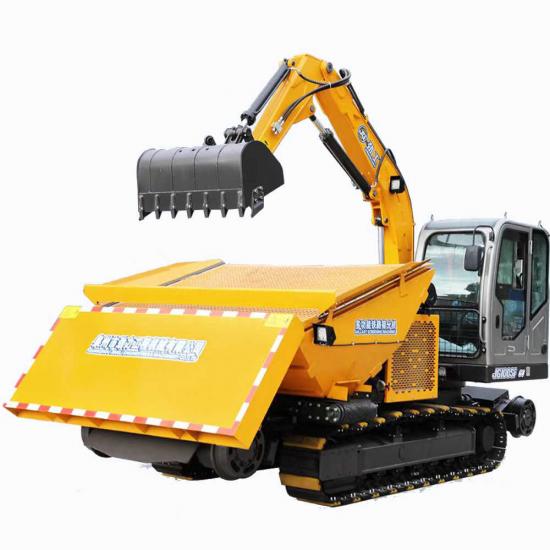

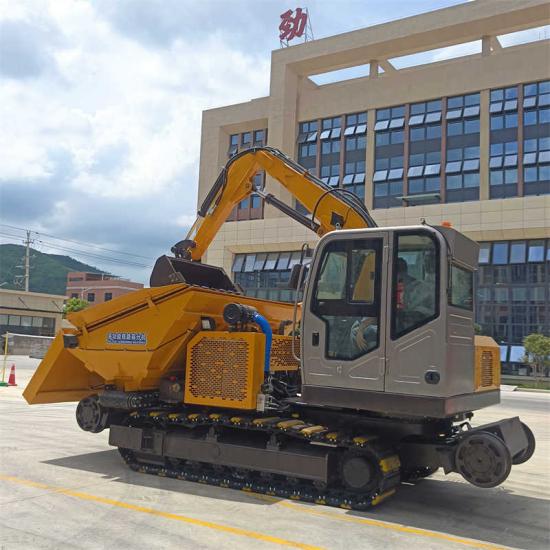

Jinggong mechanical multi-functional railway cleaning machine is an advanced railway maintenance equipment integrating efficient cleaning, intelligent control, environmental protection and energy saving. With its strong screening capacity and intelligent operating system, it can quickly remove debris in railway ballast, restore the track bed clean, and realize the recovery of track ballast and track bed reshaping, greatly improving the efficiency of railway maintenance
Item NO.:
JG100SFLead Time:
15-45 daysProduct Origin:
ChinaBrand:
JingGongShipping Port:
xiamenPayment:
FOBMarket Price:
$120000Color:
yellow/ orange/ blueTel/Whatsapp : +8613799243565
Fax : 13799243565
Email : sales@fjjgjx.com
Skype : +8613799243565

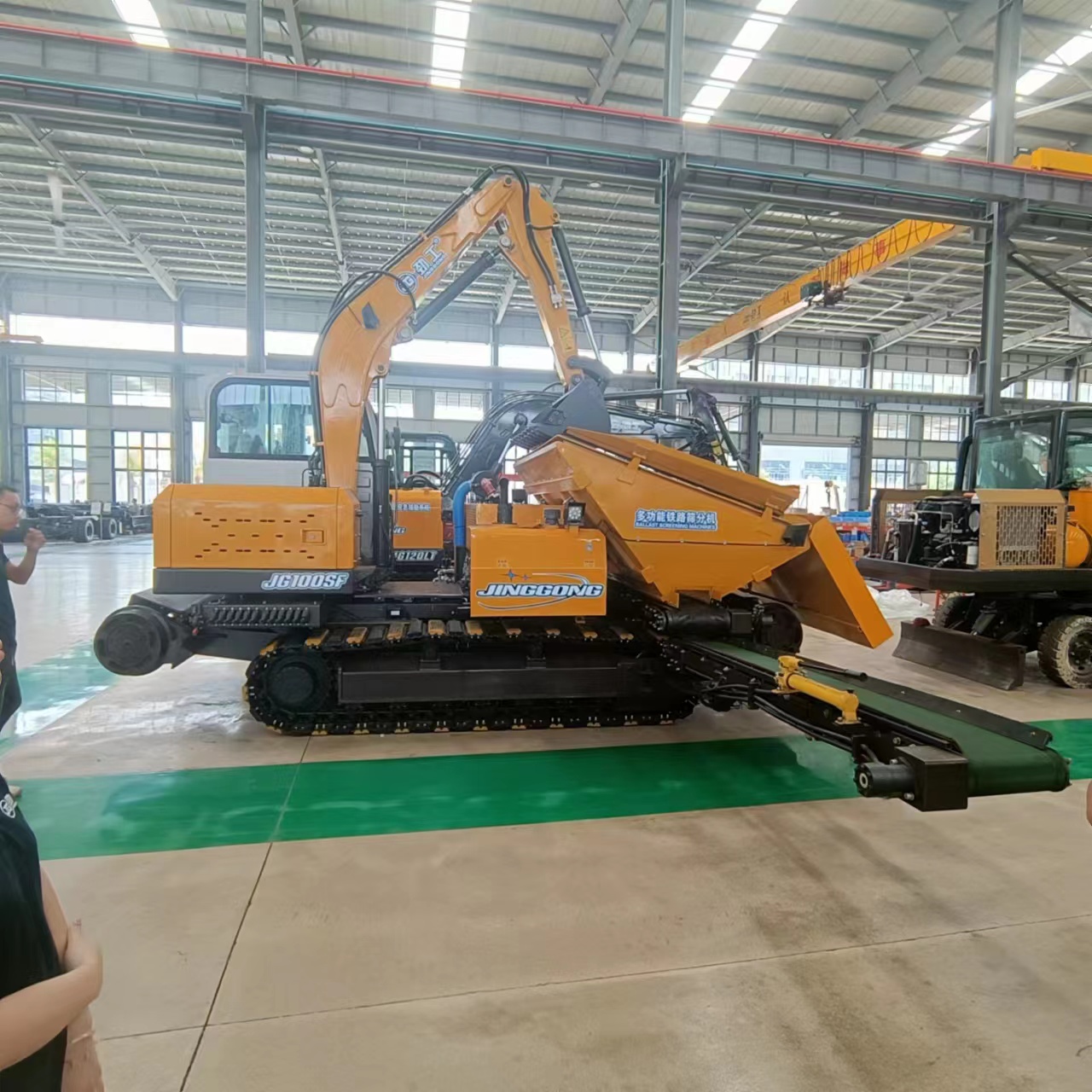

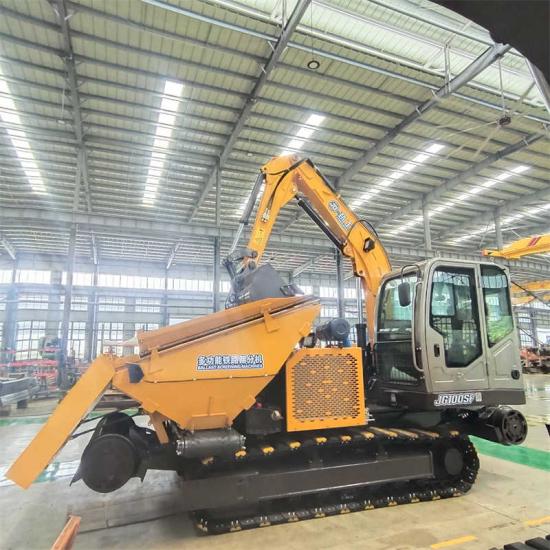

JingGong Ballast Screener Sifting Bucket machine
Ballast screening machines are equipped to effectively remove contaminants from the ballast. These contaminants, such as debris, dirt, and vegetation, are efficiently separated and disposed of aside from the track or into designated rolling stock. This cleaning process ensures the removal of unwanted elements that may compromise track stability and safety.
Our Ballast Cleaning Machine Service
1. Inquiry and consulting support
2. Pick you up from the airport of Quanzhou
3. Answer your questions about our machine at any time
4. Strict detecting system and advanced inspection equipment
l Certificates:
l Company:
Jinli Construction Machinery Co., Ltd. all of our products comply with international quality standards and are greatly appreciated in a variety of markets around the world. We are currently exporting 60%-80% of our products worldwide. Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. Besides, we have received ISO9001 and CE certification. As a result of our high quality products and outstanding customer service, we have gained a global sales network in many countries.
Excellent logistics services (by sea, air, railway or road), ensuring timely delivery of consignments all over the world. Comprehensive after-sales service, including one year warranty, spare parts supply, installment and maintenance, and training. An expertly managed ERP system and a well coordinated quality control system to satisfy various client requirements.
FAQ:
Technical parameters of JG100SF railway screening machine | |
Excavator operation parameters | |
Boom length | 3030mm |
Arm length | 1620mm |
Max. digging reach | 5200mm |
Max. digging depth(Below the tracks) | 2200mm |
Max. digging force | 28KN |
Maximum digging height (unlimited positions) | 5000mm |
Maximum working height (limit adjustable) | <4350mm |
Working radius of gyration | 950mm |
Main parameters of the screening machine operation | |
Conveyor belt drive speed | 1-1.5m/s |
Conveyor belt swing angle | 0-90° |
Conveyor belt extension range |
2m-3.5m双级上下摆动30° 30°Up and down swing |
Frequency of vibration of screening plate | 25-30Hz |
Maximum width of screening plate | 2800mm |
Bucket capacity | ≤2.5m³ |
Dimensions | |
(Length*width*height)Transport dimensions | 6000*2800*2800 |
Axle base |
2600(履带)/4400(高速) 2600 Crawler/4400 (High speed) |
Track gauge | 1600mm |
Width of crawler | 400mm |
Min. ground clearance | 300mm |
Tech performance and specification | |
Applicable railway gauge | 1435mm(可按要求定制) Customizable |
Angle of rotation | 360° |
Machine weight | 10000kg |
Engine model | 玉柴(国四) YUCHAI (Euro Ⅳ) |
Rated power | 55.8Kw |
Rated speed | 2200rpm |
Hydraulic system working pressure | 22MPa |
Hydranlic system flow | 150L/min |
Variable piston pump | 72ml/r |
Walking speed(高速/低速)(High speed/low speed) | 15Km/h / 3.5Km/h |
Grade climbing ability | 70% |
Volume of bucket | 0.5m³ |
Swing overload pressure | 16MPa |
Full circle swinging time | 6s |
Fuel quantity | 4L/h |
Fuel tank capacity | 100L |
Hydraulic oil tank capacity | 100L |
