Heavy Duty Excavator

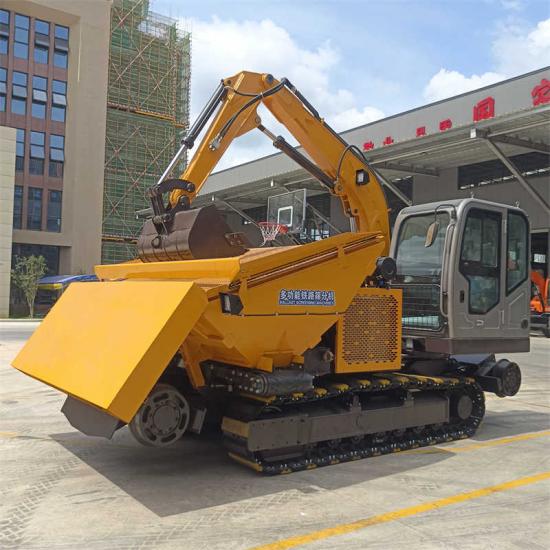

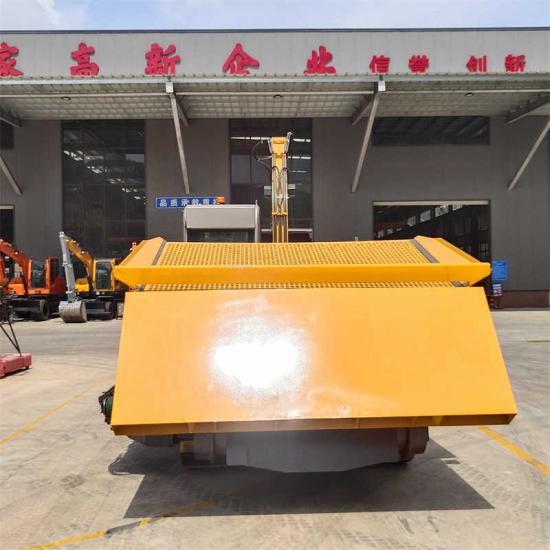

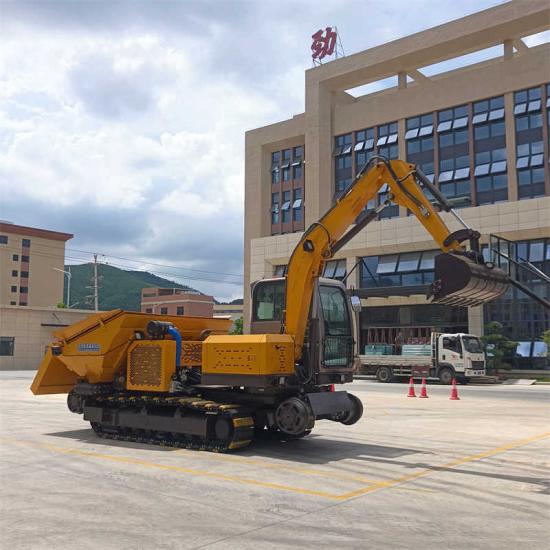

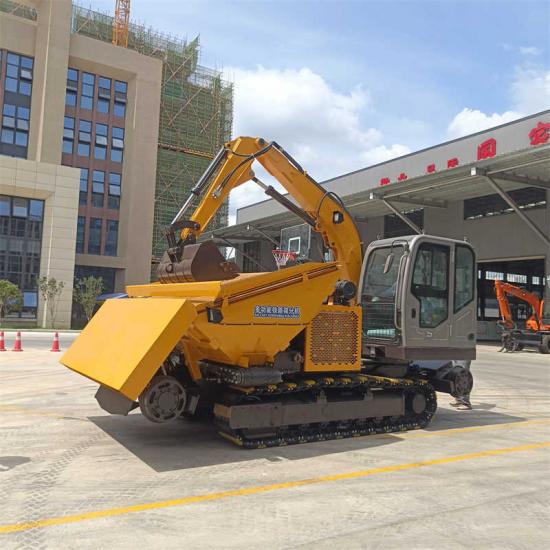

Powerful Ballast Screener Sifting Bucket Track Cleaner Equipment

Ballast Screener is a premier sifting bucket track cleaner equipment, designed for efficient and thorough cleaning of ballast tracks. Featuring robust construction and precision sieving, it ensures superior screening performance for a cleaner, safer track environment.


  • Item NO.:

    JG100SF
  • Lead Time:

    15-45 days
  • Product Origin:

    China
  • Brand:

    JingGong
  • Shipping Port:

    xiamen
  • Payment:

    FOB
  • Market Price:

    $120000
  • Color:

    yellow/ orange/ blue

how can we help you

how can we help you Contact Us
  • Product Detail
  • Technical Specifications

Powerful Ballast Screener Sifting Bucket Track Cleaner Equipment


Ballast screening machines are equipped to effectively remove contaminants from the ballast. These contaminants, such as debris, dirt, and vegetation, are efficiently separated and disposed of aside from the track or into designated rolling stock. This cleaning process ensures the removal of unwanted elements that may compromise track stability and safety.


Our Railway Maintenance Equipment Service


1. Inquiry and consulting support

2. Pick you up from the airport of Quanzhou

3. Answer your questions about our machine at any time

4. Strict detecting system and advanced inspection equipment









l Certificates:


l Company:


Jinli Construction Machinery Co., Ltd. all of our products comply with international quality standards and are greatly appreciated in a variety of markets around the world. We are currently exporting 60%-80% of our products worldwide. Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. Besides, we have received ISO9001 and CE certification. As a result of our high quality products and outstanding customer service, we have gained a global sales network in many countries.




Fujian Quanzhou Jingli Engineering And Machinery Co., Ltd. is a specialized manufacturer of excavators located in Quanzhou City. Our company has years of experience in the design, development, and production of high-quality excavators that are used by construction professionals around the world.



At Quanzhou Jingli Engineering And Machinery Co., Ltd., we are committed to providing our customers with the best possible excavators and construction machinery available on the market. We have a team of highly skilled engineers and technicians who use the latest technology and innovative design techniques to create products that exceed expectations




FAQ:






Technical parameters of JG100SF railway screening machine
 Excavator operation parameters
 Boom length 3030mm
  Arm length 1620mm
 Max. digging reach 5200mm
 Max. digging depth(Below the tracks) 2200mm
 Max. digging force 28KN
Maximum digging height (unlimited positions) 5000mm
Maximum working height (limit adjustable) <4350mm
 Working radius of gyration 950mm
 Main parameters of the screening machine operation
  Conveyor belt drive speed 1-1.5m/s
  Conveyor belt swing angle 0-90°
Conveyor belt extension range 2m-3.5m双级上下摆动30°
30°Up and down swing
  Frequency of vibration of screening plate 25-30Hz
   Maximum width of screening plate 2800mm
   Bucket capacity ≤2.5m³
 Dimensions
(Length*width*height)Transport dimensions 6000*2800*2800
 Axle base 2600(履带)/4400(高速)
2600 Crawler/4400 (High speed)
 Track gauge 1600mm
 Width of crawler 400mm
 Min. ground clearance 300mm
 Tech performance and specification
 Applicable railway gauge 1435mm(可按要求定制) Customizable
 Angle of rotation 360°
Machine weight 10000kg
 Engine model 玉柴(国四) YUCHAI (Euro Ⅳ)
 Rated power 55.8Kw
 Rated speed 2200rpm
 Hydraulic system working pressure 22MPa
 Hydranlic system flow 150L/min
 Variable piston pump 72ml/r
 Walking speed(高速/低速)(High speed/low speed) 15Km/h  /  3.5Km/h
 Grade climbing ability 70%
 Volume of bucket 0.5m³
 Swing overload pressure 16MPa
 Full circle swinging time 6s
 Fuel quantity 4L/h
 Fuel tank capacity 100L
 Hydraulic oil tank capacity 100L
