Heavy Duty Excavator

Handle Material With Orange Peel Grapples

In industrial handle material with orange peel grapples, efficiency and precision are key to getting the job done quickly and correctly. Wheeled steel grabbers are used as such to grab a variety of steel and scrap products with high efficiency.



  • Item NO.:

    JG-230L
  • Lead Time:

    15-45days
  • Product Origin:

    China
  • Brand:

    JingGong
  • Shipping Port:

    xiamen
  • Payment:

    L/C or T/T
  • Color:

    blue/orange/yellow

how can we help you

how can we help you Contact Us
  • Product Detail
  • Technical Specifications

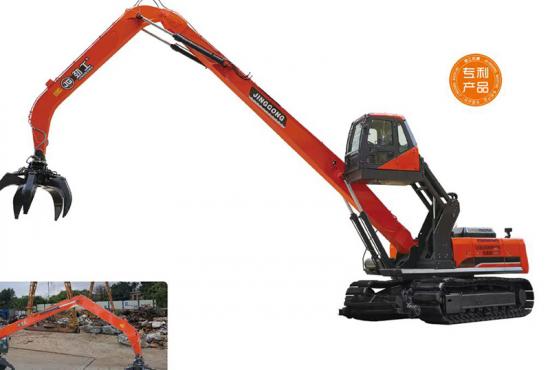

Handle Material With Orange Peel Grapples

In industrial material handling, efficiency and precision are key to getting the job done quickly and correctly. Wheeled steel grabbers are used as such to grab a variety of steel and scrap products with high efficiency.





Features Of Scrap Recycling Equipment

Wheel type metal scarp handler can be used for a wide range of material handling tasks, not only to grip various steel materials, but also to clamp and lift various other materials. The number of teeth on the grab determines the gripping force, allowing the excavator to handle larger or more complex loads.



Main Parameters


Length*width*height

13850*3000*3500mm

Grabbing Capacity

760KG

Grapple Rotation Angle

360°
Rated Power
129KW

Machine weight

25000KG


Main Parts of Iron Scrap Grab


Optional excavator working devices of JingGong excavator manufacturer china





Why Choose Us

1. Inquiry and consulting support.

2. Pick you up from the airport of Quanzhou

3. Show you around Quanzhou and translate for you freely

4. Strict detecting system and advanced inspection equipment


Company

company photo of JingGong China excavator manufacturer


If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future. We sincerely hope to cooperate, develop together and build a good future with you. China Jing Gong is your best choice for kinds of excavators in China.



Workshop Display

Workshop display of Jing Gong china excavator supplier


Our company abides by the business philosophy of "quality first, customer first" to ensure product quality. We have rigorous production procedures, and each production process is carried out under strict quality inspection.Only after passing the inspection can they move on to the next procedure. At the same time, we insist on creating a neat, clean and safe working environment.


Process

Process of excavator of Chinese excavator supplier (JingGong)

Exhibition Show

Exhibition show of Jing Gong excavator munufacturer

Certificates

certificates of JingGong China excavator manufacturer




We are located in the starting point of Maritime Silk Road Quanzhou China. Covering an area of 60,000 square meters, owning two factories, we now have over 300 employees and an annual sales figure that exceeds USD 60-80 million, annual excavators output can be around 2000-3000 sets. Such as in Philippines we already exported over 500 sets excavators succefully per year, and we have our sole sales agent in the country, so then we can offer better and more after service in the future. Also now we are looking for more our sales agent in different countries and areas, to do win-win future cooperation with our global Jing Gong big family.



SPECIFICATIONS
RANGE OF OPERATION Boom length 5700 ~ 10000mm
Arm length 3500 ~ 5000mm
Maximum Digging Height 5500 ~12750 mm
Farthest Grabing Distance 7900~ 13900 mm
Max.lifting height of cab 1800 ~ 2500mm
Back-end radius of gyratior
2800~3500mm


DIMENSION (Length*width*height) Transport Dimensions 13850*3000*3500mm
Axle base 2800 - 3300 mm
Track gaug
2400mm
Ground clearance of counterweight 1350mm
Min ground clearance 400mm
DIMENSION OF GRAPPLE Angle of rotation 360°
Weight of Grab 760Kg
Max. Opening Width of Grab 1530mm
Closing diam 880mm




TECHNICAL PARAMETERS
Machine weight 25000kg
Engine model WEICHAI Euro Ⅲ
Rated Power 129KW
Rated Speed 2000r/min
Hydraulic system working pressure 32Mpa
Hydraulic system flow 450L/min
Walking speed
25km/h
Fqt Fuel Quantity
≥12L/h
