Heavy Duty Excavator

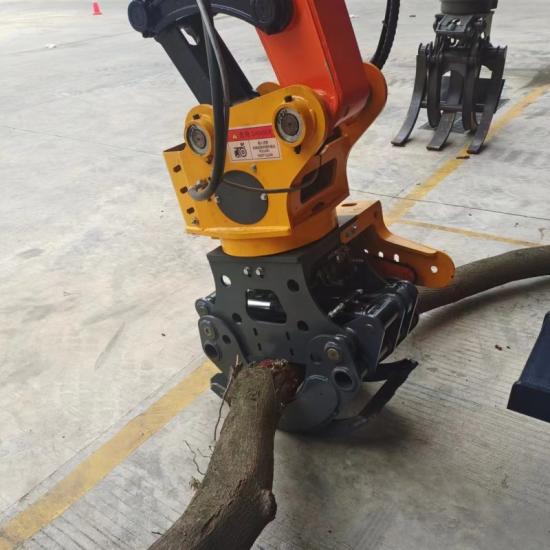

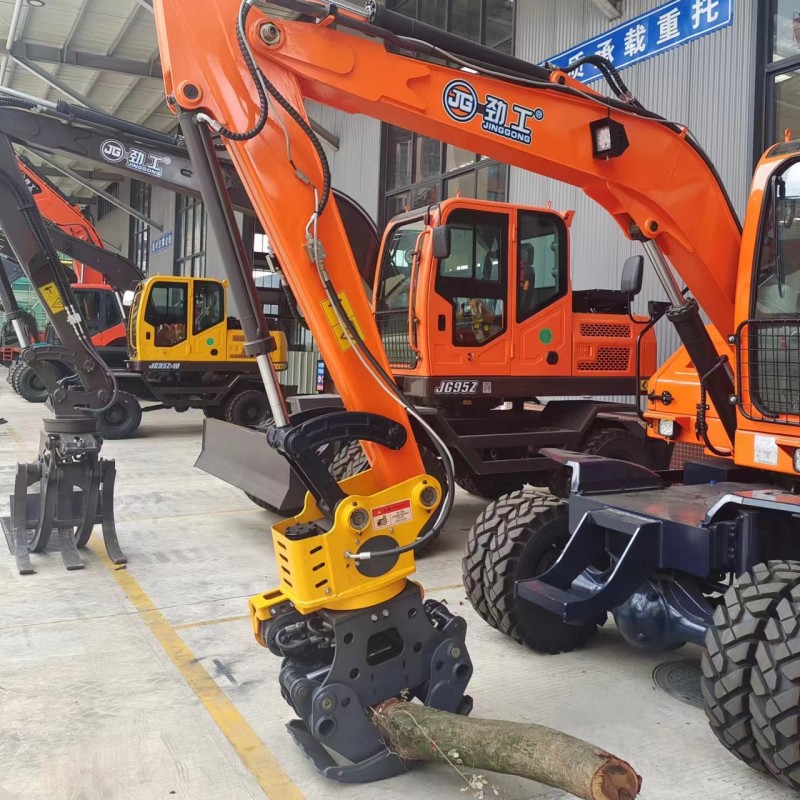

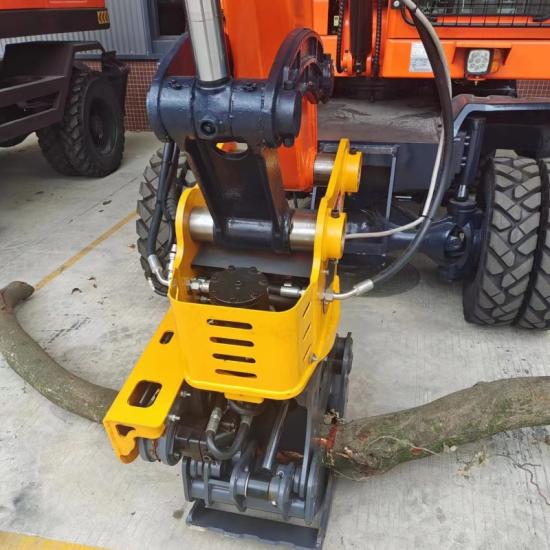

Forestry Machine Grapple Saw Harvester


It is applicable to garden pruning, tree and bamboo cutting, cutting, loading and unloading, and transportation.



  • Item NO.:

    JG-75X-9
  • Lead Time:

    15-45days
  • Product Origin:

    China
  • Brand:

    JingGong
  • Shipping Port:

    xiamen
  • Payment:

    L/C or T/T
  • Color:

    blue/orange/yellow

how can we help you

how can we help you Contact Us
  • Product Detail
  • Technical Specifications

grab saw grapples log cutting machine forest grapple chainsaw for hydraulic excavator


Why Choose Us


1. Inquiry and consulting support.

2. Pick you up from the airport of Quanzhou

3. Show you around Quanzhou and translate for you freely

4. Strict detecting system and advanced inspection equipment



Company

company photo of JingGong China excavator manufacturer


If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future. We sincerely hope to cooperate, develop together and build a good future with you. China Jing Gong is your best choice for kinds of excavators in China.



Workshop Display

Workshop display of Jing Gong china excavator supplier


Our company abides by the business philosophy of "quality first, customer first" to ensure product quality. We have rigorous production procedures, and each production process is carried out under strict quality inspection.Only after passing the inspection can they move on to the next procedure. At the same time, we insist on creating a neat, clean and safe working environment.


Process

Process of excavator of Chinese excavator supplier (JingGong)

Exhibition Show

Exhibition show of Jing Gong excavator munufacturer

Certificates

certificates of JingGong China excavator manufacturer





We are located in the starting point of Maritime Silk Road Quanzhou China. Covering an area of 60,000 square meters, owning two factories, we now have over 300 employees and an annual sales figure that exceeds USD 60-80 million, annual excavators output can be around 2000-3000 sets. Such as in Philippines we already exported over 500 sets excavators succefully per year, and we have our sole sales agent in the country, so then we can offer better and more after service in the future. Also now we are looking for more our sales agent in different countries and areas, to do win-win future cooperation with our global Jing Gong big family.




工作范围Range of operation
动臂长度     Boom length 3300mm
斗杆长度     Arm length 1850mm
最大挖掘距离 Max. digging reach 6400mm
最大挖掘深度 Max. digging depth 3300mm
最大挖掘力   Max. digging force 45KN
最大挖掘高度 Max. digging height 6700mm
最大卸载高度 Max. dumping height 4950mm
后端回转半径 Back-end radius of gyration 1820mm
外型尺寸Dimensions
(总长*总宽*总高)运输状态(Length*width*height) Transport dimensions 5800*2100*2850mm
轴距 Axle base 2400mm
轮距(前/后)Wheel base (front/rear) 1660mm/1580mm
配重离地间隙 Ground clearance of counterweight 1060mm
最小离地间隙 Min. ground clearance ≥250mm
技术性能参数Tech performance and specification
旋转角度 Angle of rotation 360°
整机重量 Machine weight 7000kg
发动机型号 Engine model 玉柴YUCHAI(国Ⅲ)
额定功率 Rated power 50KW(组合泵)
额定转速 Rated speed 2200r/min
液压系统工作压力 Hydraulic system working pressure 21Mpa
液压系统流量 Hydranlic system flow 110L/min
定量齿轮泵 Metering gear pump 25ml/r(齿轮泵)
变量柱塞泵 Variable piston pump 32ml/r(柱塞泵)
最大牵引力 Max. hauling force 45KN
最高行驶速度 Walking speed 25km/h
爬坡度 Grade climbing ability 58%/30°
轮胎型号 Tyre model 7.50-16
挖掘斗容 Volume of bucket 0.2-0.3m3
回转过载压力 Swing overload pressure 20Mpa
全回转时间 Full circle swinging time 5.5s
燃油量 Fuel quantity ≥4L/h
燃油箱容量 Fuel tank capacity 110L
液压油箱容量 Hydraulic oil tank capacity 110L
