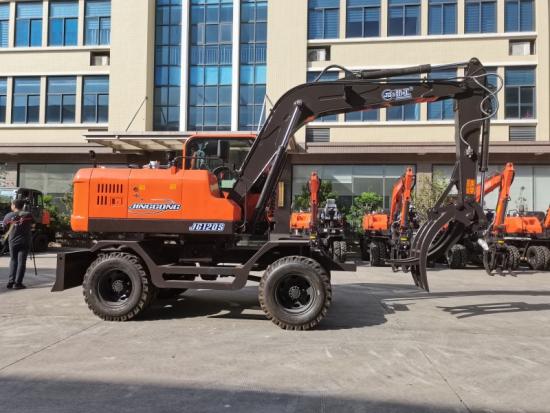

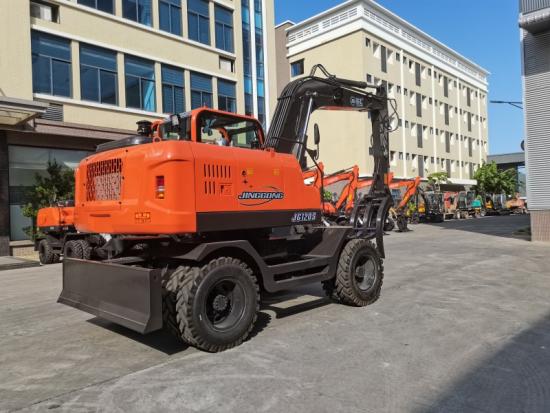

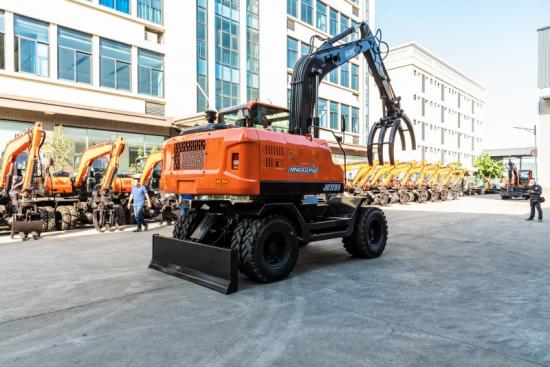

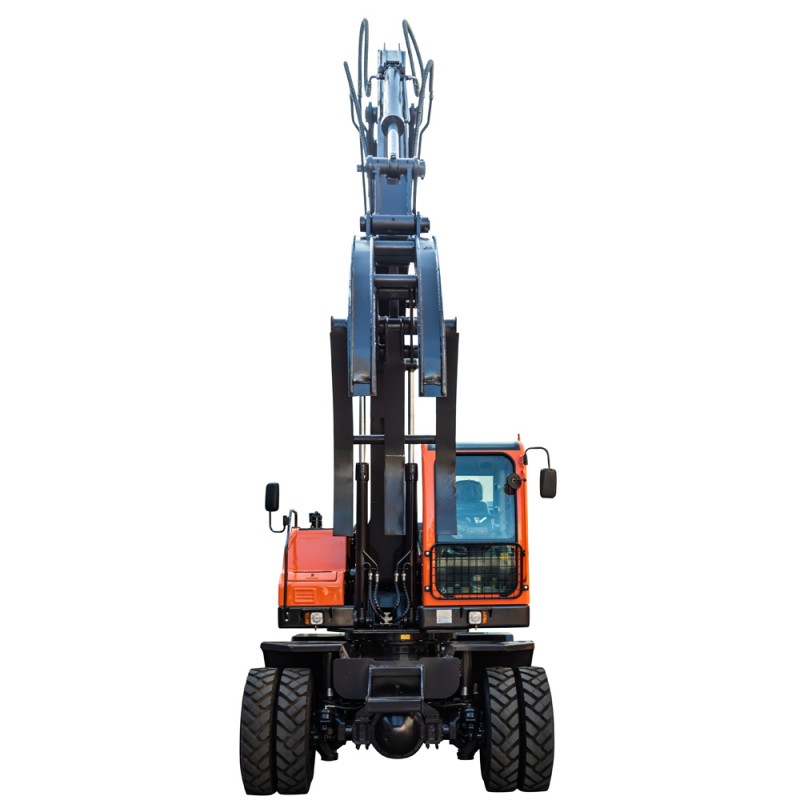

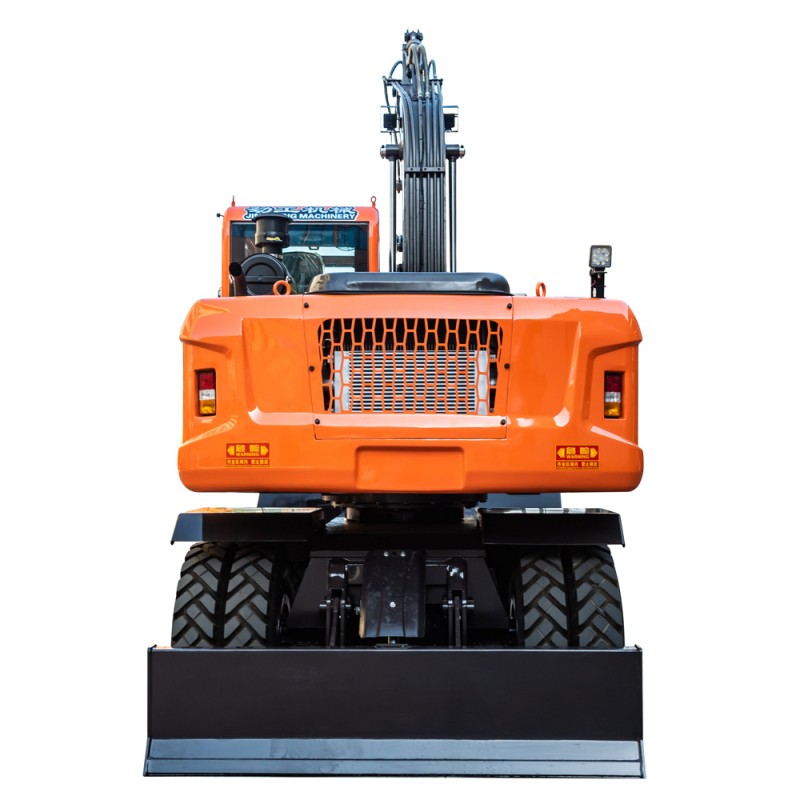

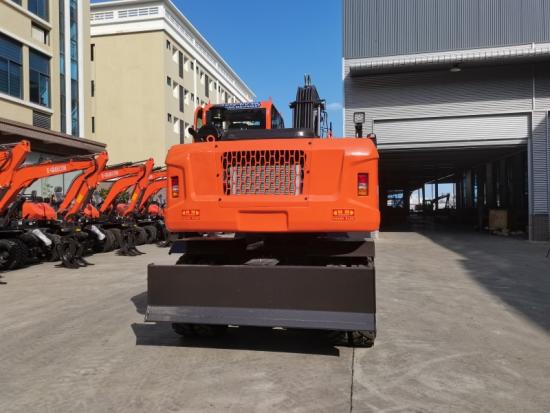

The JG120Z Mobile is a pick and carry machine that offers a very strong drive; It also acts as a transportation machine with extraordinary high lifting capacity. Loads and goods can be transported and stacked at very narrow space, through all wheel steering.
Item NO.:
JG120S-ZLead Time:
15-45 daysProduct Origin:
ChinaBrand:
JingGongShipping Port:
xiamenPayment:
FOBMarket Price:
$60000Color:
yellow/ orange/ blue
Tel/Whatsapp : +8613799243565
Fax : 13799243565
Email : sales@fjjgjx.com
Skype : +8613799243565
l Process:
l Certificates:
Jinggong Construction Machinery Co., Ltd. is located in Quanzhou, Fujian Province, a famous hometown of overseas Chinese in Southern Fujian Province. It was founded in 1997. Is a design and development, production and sales of technology-based companies. The company is equipped with all kinds of imported large-scale processing equipment, professional technical research and development team and excellent management team.
Our Service
1. Put your needs first
2. View our Factory.
3. Top quality control Size as your request Competititve price Fast delivery time
FAQ:
Q:Can I get everything customized here?
A:Definitely yes; just kindly advise us your special demands, we’ll get the job done.
Q:Can you delivery the cargo to my country?
A:Yes,we can send the cargo by sea,air or express(DHL,TNT,UPS,FEDEX).
We have our own agent.The price is 30% cheaper than official express courier.
Express takes 8-25 days and shipping takes one month.
Q:How about payment?
A:Payment term:T/T,West Union,paypal.
| SPECIFICATIONS | ||||||||||
| RANGE OF OPERATION | Boom length | 4000mm | ||||||||
| Arm length | 2150mm | |||||||||
| Maximum Digging Reach | 7200mm | |||||||||
| Maximum Digging Depth | 4400mm | |||||||||
| Maximum Digging Force | 60KN | |||||||||
| Maximum Digging Height | 6500mm | |||||||||
| Maximum Dumping Height | 4700mm | |||||||||
| Back-end radius of gyration | 2000mm | |||||||||
| DIMENSION | (Length*width*height) travel position | 6700*2380*3055mm | ||||||||
| Wheel base | 2600mm | |||||||||
| Track(Front/rear) | 1930mm/1830mm | |||||||||
| Ground clearance of counterweight | 1250mm | |||||||||
| Min ground clearance | 440mm | |||||||||
| TECHNICAL PARAMETERS | Angle of rotation | 360° | ||||||||
| Machine weight | 9000kg | |||||||||
| Engine model | YUCHAI YC4DK100 | |||||||||
| Rated Power | 73.5KW | |||||||||
| Rated Speed | 2200r/min | |||||||||
| Hydraulic system working pressure | 25Mpa | |||||||||
| Hydraulic system flow | 180L/min | |||||||||
| The Speed of Automatic Transmission Gear Forward / Backward (Tiptronic/ Full Hydraulic) | Forward5/Backward1 1 (JG120SC) | |||||||||
| Max Hauling force | 50KN | |||||||||
| Walking speed | 25km/h | |||||||||
| Grade Climbing ability | 58%/30° | |||||||||
| Tyre model | 825.16 | |||||||||
| Volume Of Bucket | 0.35m³ | |||||||||
| Full circle swinging time | 5.5s | |||||||||
| Fqt Fuel Quantity | ≥6L/h | |||||||||
| Capacity Of The Fuel Tank | 150L | |||||||||
| Hydraulic Tank Capacity | 150L | |||||||||
