Item NO.:
JG-100LLead Time:
15-45daysProduct Origin:
ChinaBrand:
JingGongShipping Port:
xiamenPayment:
L/C or T/TPrice:
$42000/unitColor:
blue/orange/yellow
Tel/Whatsapp : +8613799243565
Fax : 13799243565
Email : sales@fjjgjx.com
Skype : +8613799243565

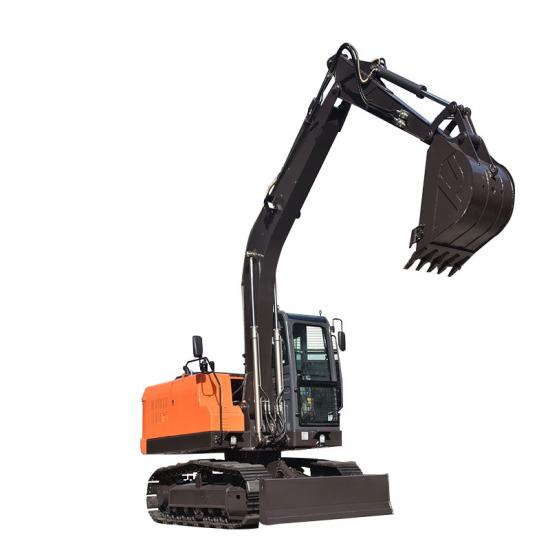

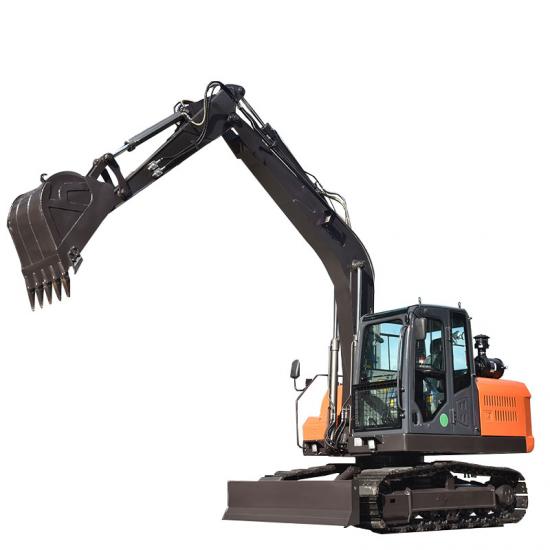

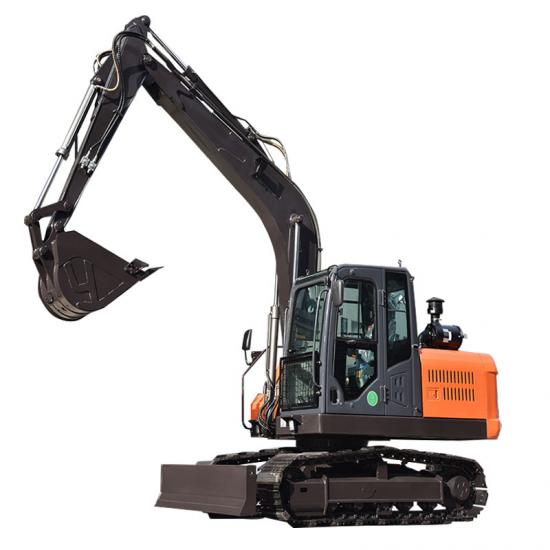

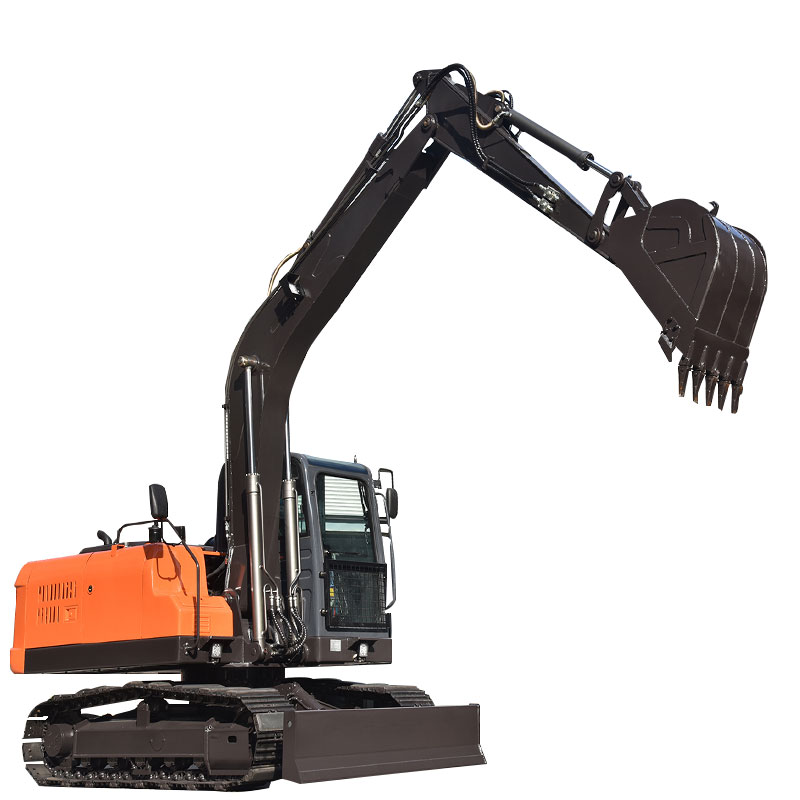

10Tons Crawler Earthmoving Excavator Hydraulic Digger Chain Excavator For Sale
| Features Of Crawler Excavator
Due to the large ground area, it is better to work in muddy, wetland and other places where it is easy to get stuck. Because the excavator itself has a large weight, the excavator can go to a wide range of places. In addition, because the crawler is a metal product, it can also be competent in mines or places with bad working conditions, with strong cross-country capability, low production cost and small investment.
| Main Parameters of Hydraulic excavator
|
Length*width*height |
6800*2260*2660mm |
|
Rated Power |
73.5KW |
|
Machine weight |
10000KG |
| Main Parts of Hydraulic Excavator
We provide more optional parts to complete more kinds of work. We provide a variety of work tools such as grabs, forks, pulverizers, etc. to meet your various application needs. In addition, a variety of fixtures are provided to optimize the performance of the machine. The auxiliary hydraulic lines are arranged on the base of the boom, making the auxiliary hydraulic circuit easier to install, thereby reducing the time, parts and costs required for installing work tools.
| Why Choose Us
1. Use specified high-quality cylinder
2. Full hydraulic pilot operation, advanced and perfect operation system, light and flexible
3.The boom cylinder is provided on the back of the boom. When loading sand and soil into a 2t dump truck, there is no need to worry about damage to the boom cylinder.
| Company
We are a leading manufacturer and exporter of wheel excavators, crawler excavators, sugarcane harvesters, sugarcane grab loaders, multi-function excavators. We have nearly 20 years of professional experience, and our products have been exported to many countries.

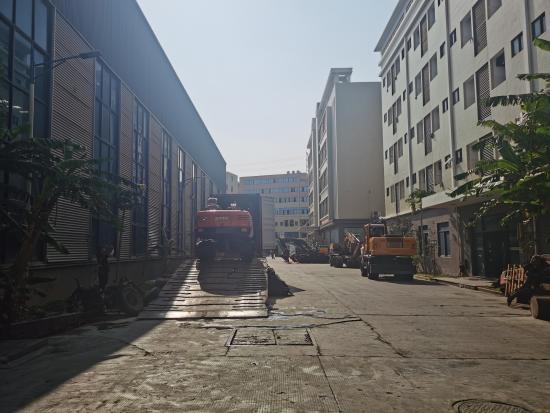

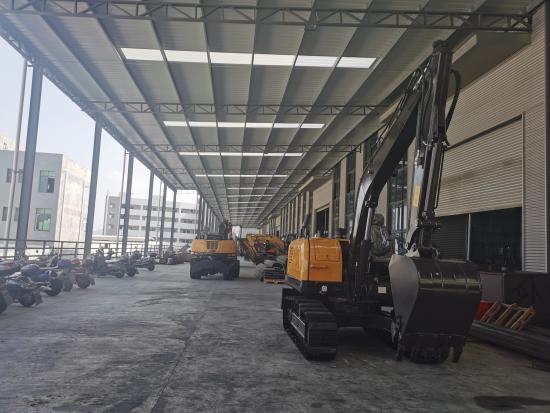

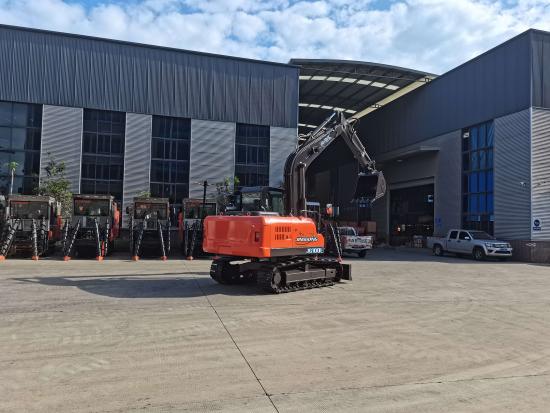

| Workshop Display
We are located in the starting point of Maritime Silk Road Quanzhou China. Covering an area of 60,000 square meters, owning two factories, we now have over 300 employees and an annual sales figure that exceeds USD 60-80 million, annual excavators output can be around 2000-3000 sets. Such as in Philippines we already exported over 500 sets excavators succefully per year, and we have our sole sales agent in the country, so then we can offer better and more after service in the future. Also now we are looking for more our sales agent in different countries and areas, to do win-win future cooperation with our global Jing Gong big family.
| Process
| Exhibition Show
| Certificates
FAQ
Q: Are you interested in dealership with local company?
A: Yes, we are quite interested in this business. We'd like to cooperate with some local partner to sell more machines in local market and supply better service.
Q: What is your warranty policy?
A: We can supply one year warranty for our machines. We will provide parts as free within warranty. We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q: Do you offer a guarantee?
A: Yes, we guarantee our product for one year. Provide after-sales service support and technical support online, If any questions, contact our sales directly, we will help solve all the problems.
| SPECIFICATIONS | ||||||||||
| RANGE OF OPERATION | Boom length | 3830mm | ||||||||
| Arm length | 1900mm | |||||||||
| Maximum Digging Reach | 7000mm | |||||||||
| Maximum Digging Depth | 4320mm | |||||||||
| Maximum Digging Force | 60KN | |||||||||
| Maximum Digging Height | 6200mm | |||||||||
| Maximum Dumping Height | 4150mm | |||||||||
| Back-end radius of gyration | 2000mm | |||||||||
| DIMENSION | (Length*width*height) travel position | 6500*2230*2660mm | ||||||||
| Machine Height | 2660mm | |||||||||
| Wheel base | 2320mm | |||||||||
| Track Gauge | 1750mm | |||||||||
| Width Of Crawler | 450mm | |||||||||
| Width Of Platform | 2230mm | |||||||||
| Ground clearance of counterweight | 820mm | |||||||||
| Min ground clearance | 360mm | |||||||||
| TECHNICAL PARAMETERS | Angle of rotation | 360° | ||||||||
| Machine weight | 8800kg | |||||||||
| Engine model | YUCHAI | |||||||||
| Hydraulic system working pressure | 24Mpa | |||||||||
| Hydraulic system flow | 158L/min+60L/min | |||||||||
| Variable piston pump | 2*36ml/r+28ml/r | |||||||||
| Rated Power | 62.5KW | |||||||||
| Rated Speed | 2200r/min | |||||||||
| Max Hauling force | 58.5KN | |||||||||
| Walking speed(High speed/low speed) | 4.8/2.8km/h | |||||||||
| Grade Climbing ability | 70%/35° | |||||||||
| Full circle swinging time | 5.5s | |||||||||
| Volume Of Bucket | 0.35m3 | |||||||||
| Revolution Overdrive Pressure | 20Mpa | |||||||||
| Fqt Fuel Quantity | ≥6L/h | |||||||||
| Capacity Of The Fuel Tank | 130L | |||||||||
| Hydraulic Tank Capacity | 120L | |||||||||
